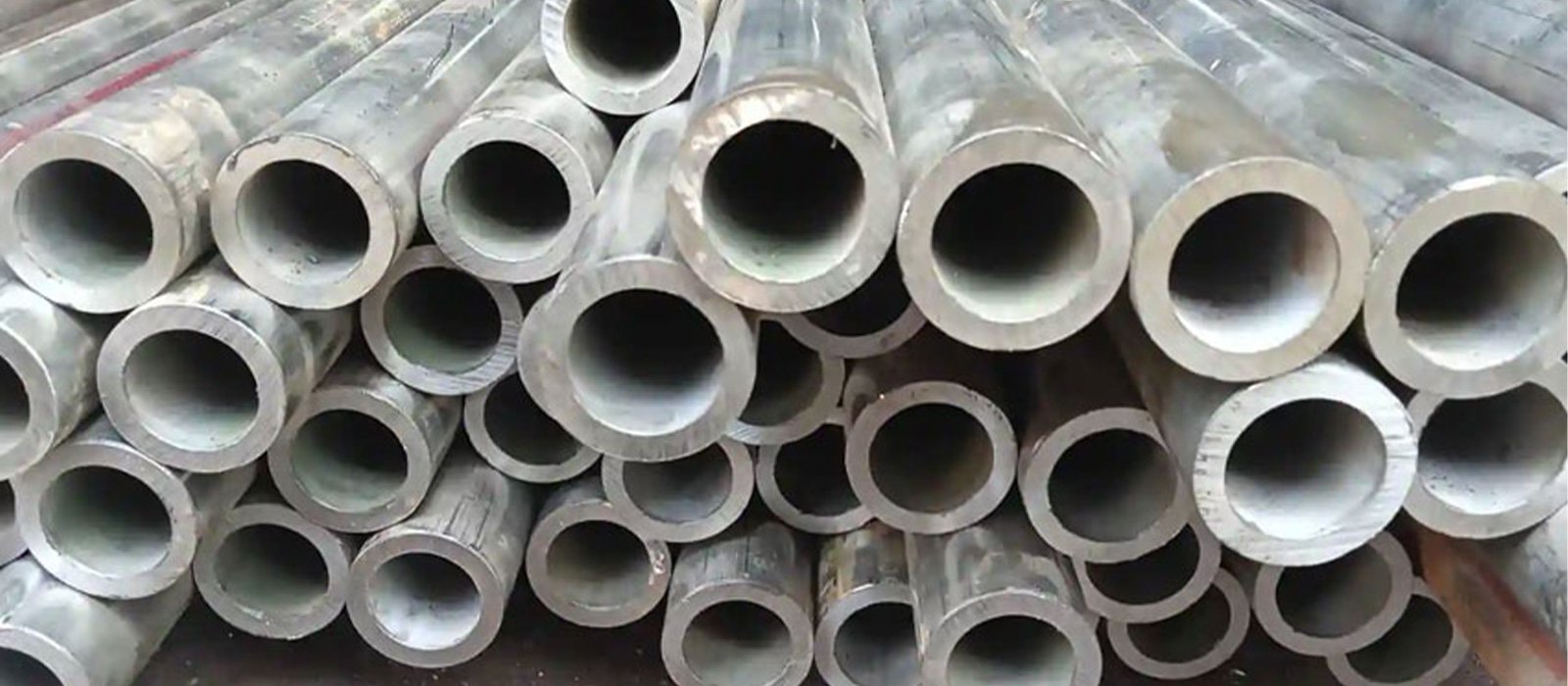

Mild Steel Pipes And Tubes Supplier, Manufacturer
Elegant Pipes India LLP specializes in manufacturing and supplying a wide range of Mild Steel Pipes and MS Tubes designed for structural, mechanical, and pressure-bearing applications. Engineered for versatility, our range includes MS Pipes, MS Tubes, MS Square Pipes, MS Rectangular Pipes and MS Circular Pipes and Tubes each produced with precision to meet IS and ASTM standards.
Our MS Tubing is known for its excellent weldability, uniform wall thickness, and load-bearing strength, making it suitable for use in construction frameworks, general engineering, water transportation, and fabrication. Whether you’re sourcing MS Square Pipe for modular structures or MS Circular Tubes for round-section requirements, we ensure tight dimensional tolerances and superior surface finish across all profiles.
As one of the trusted MS Square Pipe Manufacturers in India, we also supply MS Circle Pipes and Tubes for sectors requiring circular sections with high forming and bending capacity. All products undergo quality checks for tensile strength, elongation, and corrosion resistance to ensure long-term performance in diverse environments.
Mild Steel Pipes, MS Tubes Specification
Mild Steel Pipes, MS Tubes Dimensions
| Nominal Bore | Outside Diameter | Light (A-Class) Thickness Weight | Medium (B-Class) Thickness Weight | Heavy (C-Class) Thickness Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Inch | mm | mm | kg/mtr | mm | kg/mtr | mm | kg/mtr | |
| 1/8″ 3 mm |
0.406 | 10.32 | 1.80 | 0.361 | 2.00 | 2.65 | 0.493 | |
| 1/4″ 6 mm |
0.532 | 13.49 | 1.80 | 0.517 | 2.35 | 0.407 | 2.90 | 0.769 |
| 3/8″ 10 mm |
0.872 | 17.10 | 1.80 | 0.674 | 2.35 | 0.852 | 2.90 | 1.02 |
| 1/2″ 15 mm |
0.844 | 21.43 | 2.00 | 0.952 | 2.65 | 1.122 | 3.25 | 1.45 |
| 3/4″ 20 mm |
1.094 | 27.20 | 2.35 | 1.410 | 2.65 | 1.580 | 3.25 | 1.90 |
| 1″ 25 mm |
1.312 | 33.80 | 2.65 | 2.010 | 3.25 | 2.440 | 4.05 | 2.97 |
| 1.1/4″ 32 mm |
1.656 | 42.90 | 2.65 | 2.580 | 3.25 | 3.140 | 4.05 | 3.84 |
| 1.1/2″ 40 mm |
1.906 | 48.40 | 2.90 | 3.250 | 3.25 | 3.610 | 4.05 | 4.43 |
| 2″ 50 mm |
2.375 | 60.30 | 2.90 | 4.110 | 3.65 | 5.100 | 4.47 | 6.17 |
| 2.1/2″ 65 mm |
3.004 | 76.20 | 3.25 | 5.840 | 3.65 | 6.610 | 4.47 | 7.90 |
| 3″ 80 mm |
3.500 | 88.90 | 3.25 | 6.810 | 4.05 | 8.470 | 4.85 | 10.1 |
| 4″ 100 mm |
4.500 | 114.30 | 3.65 | 9.890 | 4.50 | 12.10 | 5.40 | 14.4 |
| 5″ 125 mm |
5.500 | 139.70 | – | – | 4.85 | 16.20 | 5.40 | 17.8 |
MiId Steel Pipes, Tubes Tolerance
| (a) Thickness | ||
| (1) | Butt welded Light tubes |
+Not limited – 8 percent |
| Medium and Heavy tubes |
+ Not Limited – 10 percent |
|
| (2) | Seamless Tubes |
+Not Limited – 12.5 percent |
| (b) Weight : | ||
| (1) | Single tube (light series) |
+10 percent – 8 percent |
| (2) |
Single tube (medium & heavy Series) |
+10 percent |
Mild Steel Pipes and Mild Steel Tubes Application
|
Industry / Sector |
Application Area |
Product Type Used |
|---|---|---|
| Construction & Infrastructure | Structural frameworks, scaffolding, support columns, fencing, sheds | MS Pipe, MS Square Pipe, MS Circular Pipe |
| Water Supply & Plumbing | Water transmission, drainage lines, irrigation systems | MS Pipe, MS Tubing |
| Automotive & Transport | Chassis parts, support bars, tubular components in trailers and trolleys | MS Tube, MS Circular Tube |
| Furniture & Architecture | Metal furniture, modular structures, gates, railings, and partition systems | MS Square Pipe, MS Tube |
| Oil & Gas / Petrochemicals | Protective casing, cable routing, structural pipe supports | MS Pipe, MS Circle Pipe |
| General Engineering | Machine frames, fabrication, tooling supports, brackets | MS Tube, MS Square Pipe |
| Agriculture & Greenhouses | Greenhouse frames, agricultural machinery, piping for irrigation and misting | MS Circular Tube, MS Pipe |
| Textile & Manufacturing Plants | Compressed air systems, fluid lines, framework supports | MS Pipe, MS Tube |
| Shipbuilding & Marine | Internal partitions, piping for non-corrosive systems, bunk structures | MS Pipe, MS Tubing |
| Power & Energy | Cable trays, structural racking, pipe racks, mechanical supports | MS Circle Pipes and Tubes, MS Square Pipe |
